FR02FC16P-S
Manufacturer:
NKK Switches
Mfr.Part #:
FR02FC16P-S
Datasheet:
Description:

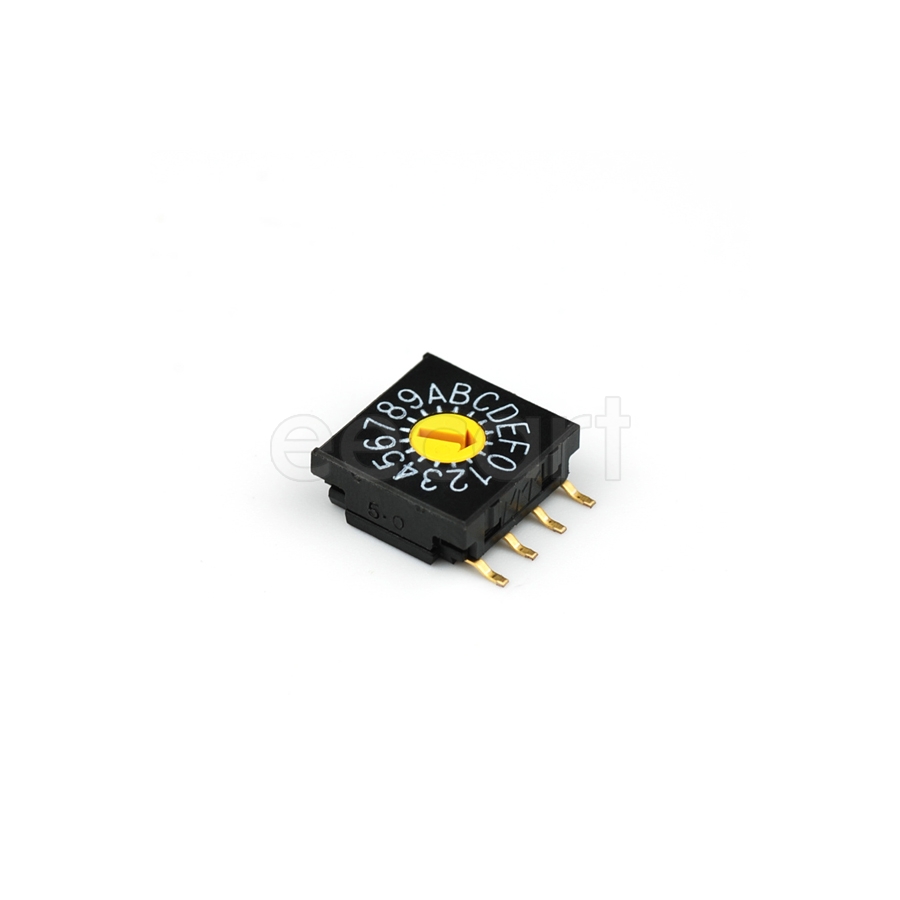

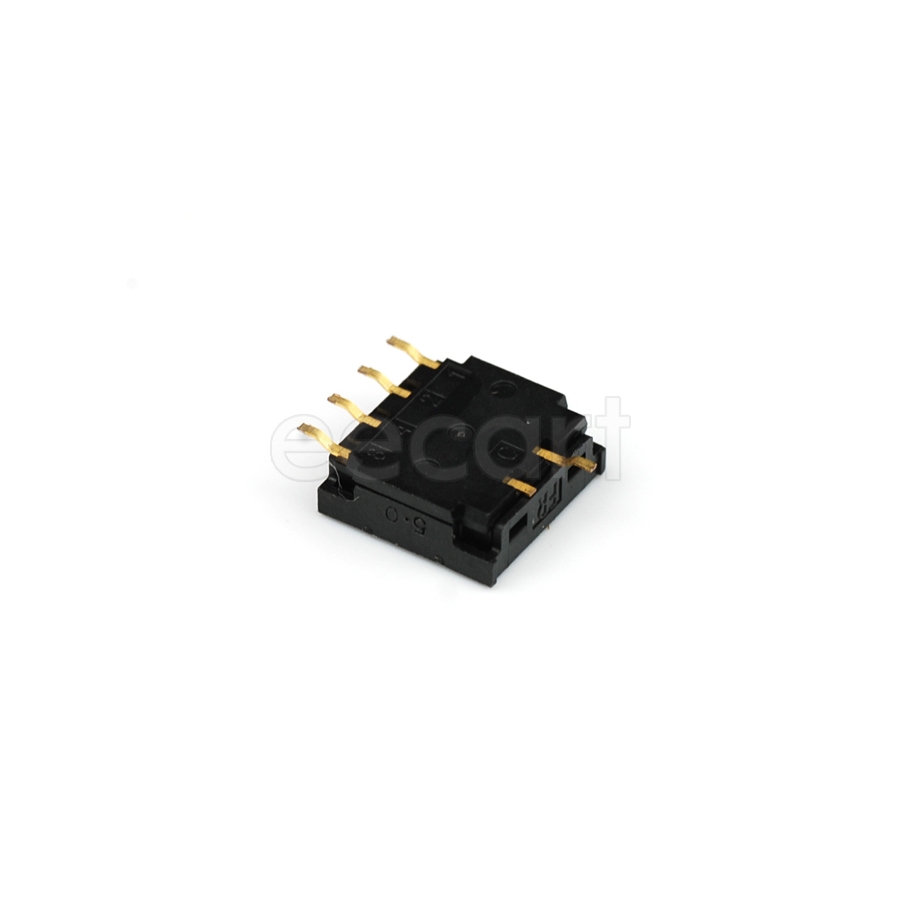

DIP Switches SMD/SMT Hexadecimal Complement Number of Positions:16 Current Rating:100 mA Rotary for Tool
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 V |
| Length | 9.9822 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Circuit Type | Hexadecimal Complement |
| Packaging | Tube |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Lead/Base Style | Gull Wing |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 100 mA |
| Body Material | Glass, Nylon, Polyamide |
| Number of Positions | 16 |
| Housing Material | Nylon |
| Actuator Type | Rotary for Tool |
| Washable | No |
Stock: 834
Distributors
pcbx
pcbxUnit Price$3.43485
Ext.Price$3.43485
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.43485 | $3.43485 |
| 10 | $2.86568 | $28.65680 |
| 25 | $2.67968 | $66.99200 |
| 50 | $2.50577 | $125.28850 |
| 100 | $2.36769 | $236.76900 |
| 300 | $2.22586 | $667.75800 |
| 500 | $2.09251 | $1046.25500 |
| 1000 | $1.99380 | $1993.80000 |
